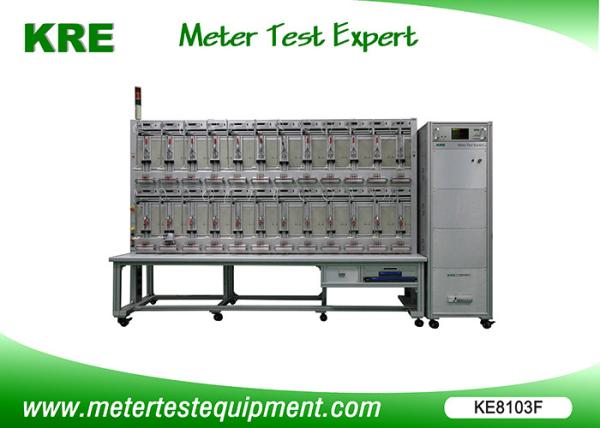

Single Phase Energy Meter Test Bench With ICT Class 0.05 Two Current Source

KE8103 single phase electric meter test equipment

KE8103 has two current sources, which make it possible to test two elements simultaneously. It is used for testing 1P2W or 3P3W mechanical and electric meter, Number of meter position : 3-48

Features:

² Integrated/Separated aluminum alloy structure, light and reliable, flexible choices
² The number of meter positions can be chosen from 6 - 48
² Perfect alarming protective function, auto protection of the short circuit ofvoltage,the open circuit of current, and overload.
² Full automatic, semi automatic and manual operation available
² Supporting bar code input, which increase the efficiency of input
² Simultaneous test of the energy meters with same specification, different constants anddifferent classes.
² Auto marklocking increases the efficiency of test
² Forward and reverse active energy / forward and reverse reactive energy error test
² Creeping and starting test
² Standard deviation, 24 hour variation test
² Influencing quantity test of voltage, frequency, harmonic
² Calibration and verification of energy constant
² Powerful computer management system, easy and user-friendly
² Perfect database management makes the storage, searching, and viewing of the datapossible, and the data can be converted and exported in other forms
² The test of open circuit for Neutral voltage (optional)
² Adopt multi-serial port system, realizing the parallel communication of computerandthe tested meters (optional)


Main Specification:

Wiring diagram





Packing and shipping
